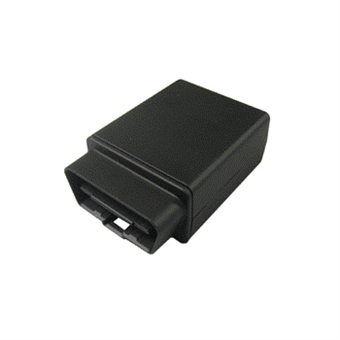

LMU-3030

GPS Tracking Unit with OBD-II Interface
The LMU-3000 is an economical, full-featured vehicle tracking product designed for easy and reliable installation in automobiles. The LMU-3000 is an ideal solution for automotive insurance, driver behavior management, auto rental and automotive applications when access to the vehicle diagnostics interface (OBD-II) is required.

Competitive Price, Competitive Technology, Competitive Edge
The LMU-3000 full featured tracking unit from CalAmp features a small size, superior GPS design, OBD-II interface, and a 3-axis accelerometer. These features enable the LMU-3000 to access vehicle diagnostic interface data, track vehicle speed and location, plus detect hard braking, cornering or acceleration. Superior internal antennas for both cellular and GPS eliminate the need for professional installation and make the LMU-3000 install quick, easy and inexpensive. Messages are transported across the cellular network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-3000 is designed to dramatically reduce cost, power and size while significantly improving field reliability in 12 volt passenger or light-duty vehicles.

Flexibility
The LMU-3000 employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

Over-the-Air Serviceability
The LMU-3000 also leverages CalAmp's industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over the air. PULS offers out-of-the-box hands free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers' fleets to quickly identify issues before they become expensive problems.

    Features
  • Superior GPS & cellular quality
  • Built-in cellular and GPS antenna for easy installation
  • Built-in OBD-II connector to read vehicle bus data
  • Built-in Accelerometer for driver behavior capabilities and impact detection
  • Pre-impact data capture capabilities
  • Power sleep modes
